DEER STAND TOWER

ASSEMBLY INSTRUCTIONS

(Printable)

by TEXAS DEER STANDS


NOTES:

**Do not tighten nuts until tower is fully assembled.**

**All Diagonals will connect to the outside of Vertical Legs.**

**All Horizontals will connect to the inside of Vertical Legs.**



4x4, 4x6, 5x6

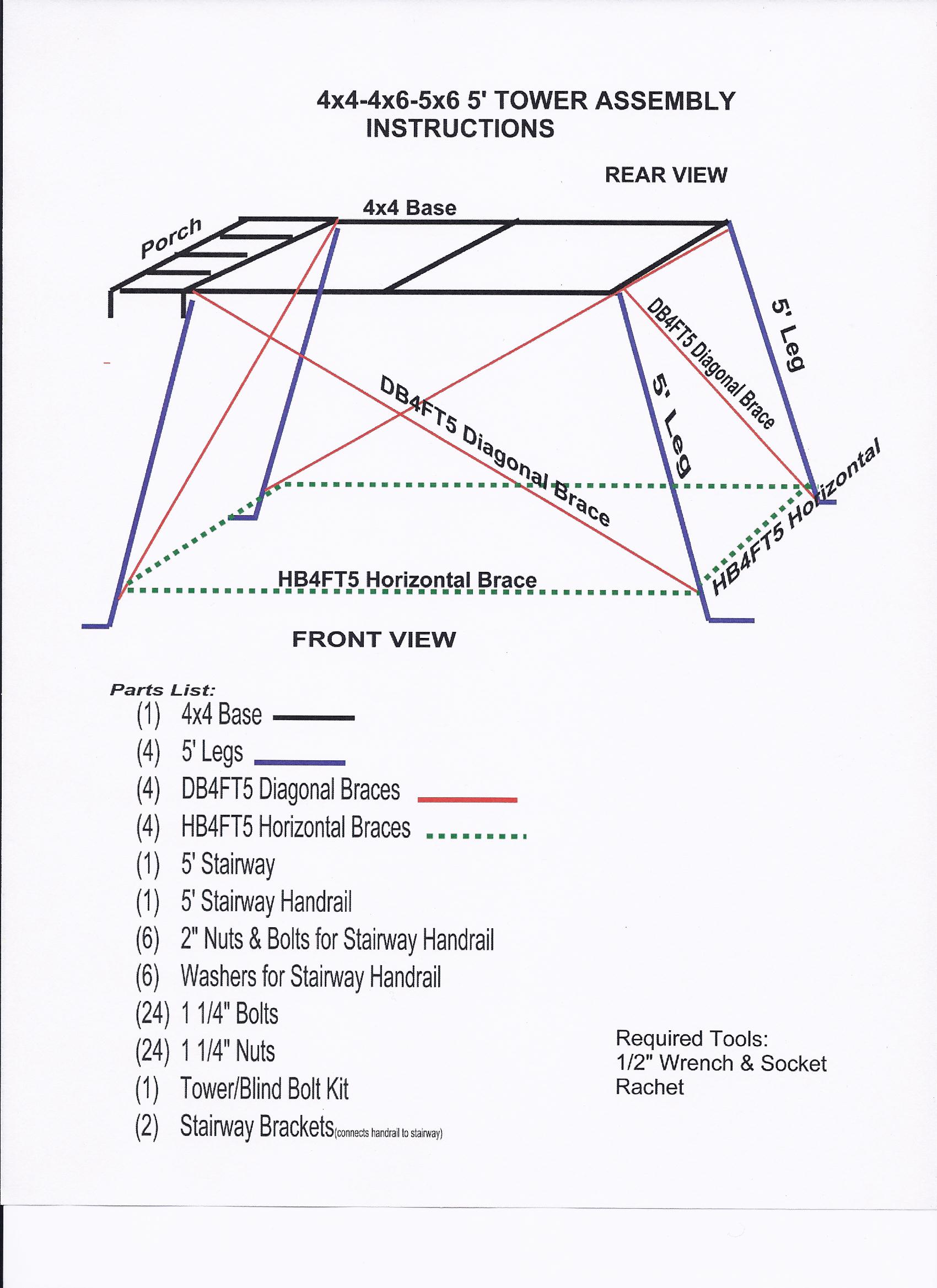

5' Tower Assembly Instructions

(A)    Position Base on Side.

(B)    Attach (4) 5' Legs to inside of Base Legs.

(C)     Attach HB4FT5 Horizontal Braces (see diagram) angel down to the inside of Vertical Legs.  You will need to remove nut from bolt and reattach after connecting brace.

(D)    Attach DB4FT5 Diagonal Braces (see diagram) angle down to outside of Vertical Legs.  You will need to remove nut from bolt and reattach after connecting brace.

(E) Tighten all nuts using a 1/2" wrench, ratchet and socket.

(F) Attach Porch Handrail using 2" bolts and 5/16 nuts at side of porch.

(G) Attach Blind to Tower using supplied bolt kit.

(H) Stand Blind and Tower in standing position.

(I)    Attach Stairway to slots at Porch end.

(J)     Attach 5' Stairway Handrail to Stairway using 2 stairway brackets.



4x4, 4x6, 5x6

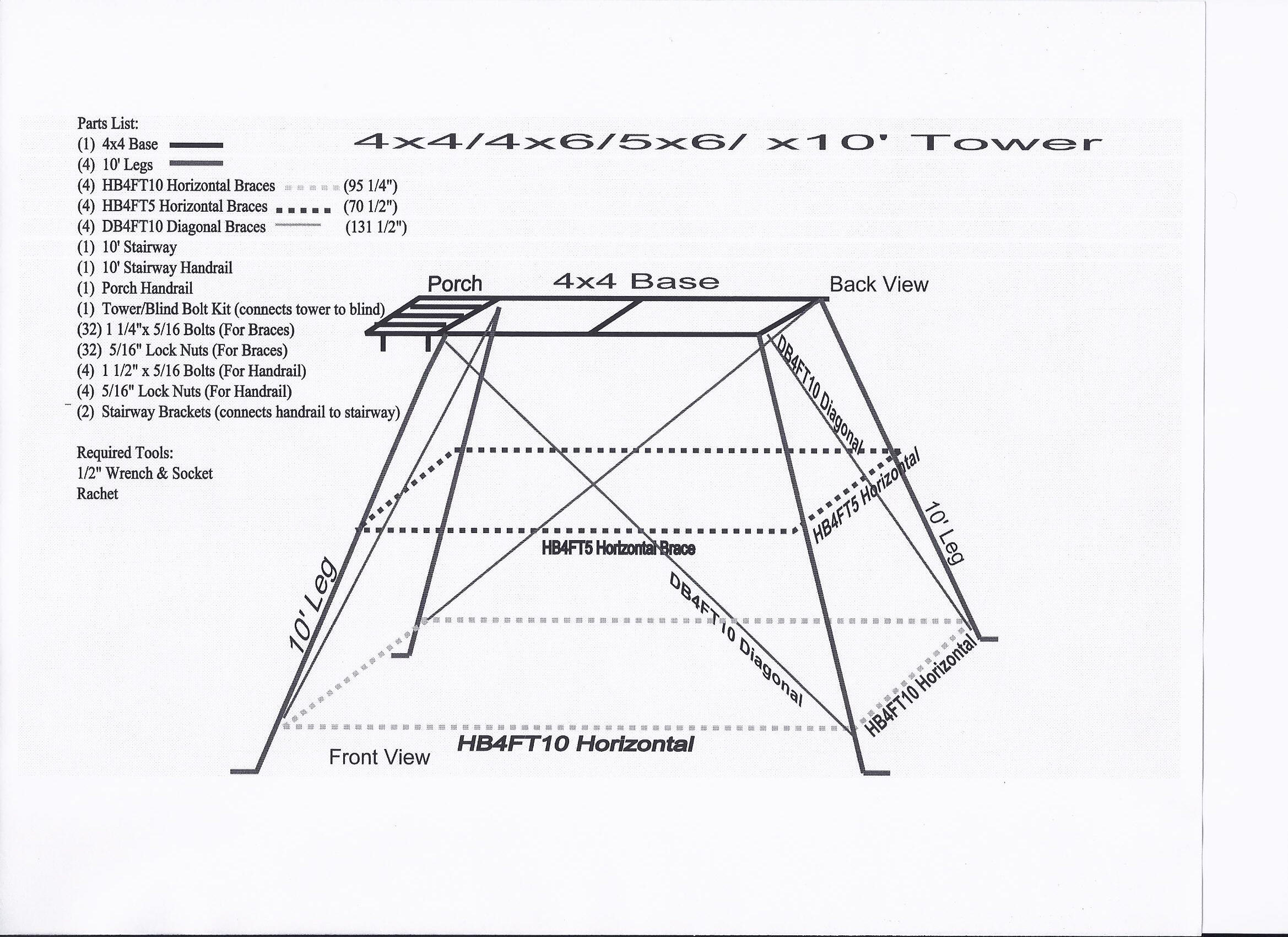

10' Tower Assembly Instructions



(A)    Position Base on side.

(B)    Attach (4) 10' Legs to inside of Base Legs.

(C)     Attach HB4FT5 Horizontal Braces (see diagram) angle down to the inside of Vertical Legs.  You will need to remove nut from bolt and reattach after connecting brace.

(D)    Attach HB4FT10 Horizontal Braces (see diagram) angel down to inside of Vertical Legs.  You will need to remove nut from bolt and reattach after connecting brace.

(E)    Attach DB4FT10 Diagonals (see diagram) outside of legs.  You will need to remove nut from bolt and reattach after connecting brace.

(F)    Tighten all nuts using 1/2" wretch, ratchet and socket.

(G)    Attach Handrail using 2" bolts and 5/16" nuts at side of porch.

(H)    Attach Blind to Tower using supplied bolt kit.

(I)    Stand Blind and Tower in standing position.

(J)    Attach Stairway to slots at Porch end.

(K)    Attach Stairway Handrail to Stairway using stairway brackets.
